AZtecLive is a revolutionary new approach to EDS analysis that enables a radical change in the way users perform sample investigation in the SEM. It combines a live electron image with live X-ray chemical imaging to give an intuitive new way of interacting with your samples.

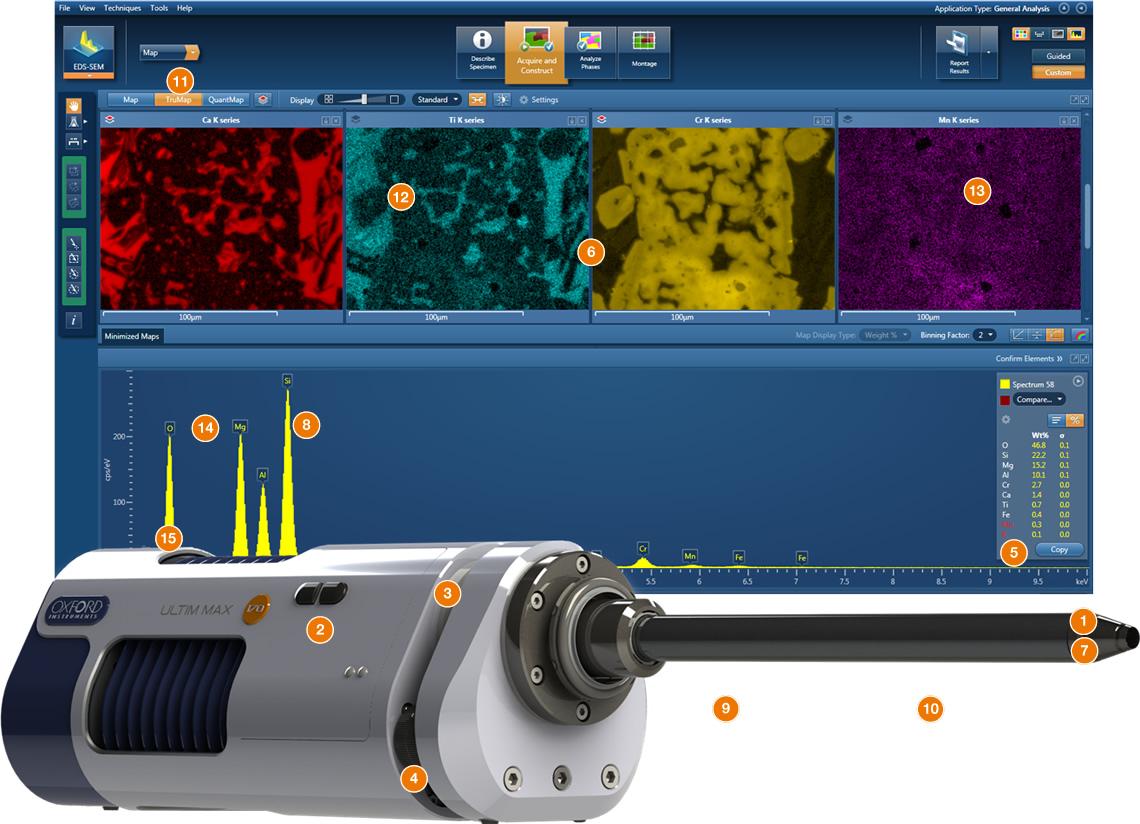

AZtecLive is powered by Ultim Max, the next generation Silicon Drift Detectors (SDD) combining the largest sensor sizes with Extreme electronics to deliver unparalleled speed and sensitivity.
Real-time chemical imaging
Record every step of your analysis with Live Trace
Video rate electron and chemical imaging enables real-time navigation by chemistry for the first time.
LIVE TRACE
Automatically record where you have been and what elements have been detected so you never lose a feature of interest. See both the position and concentration of elements to quickly find ‘hot spots’.
ULTIM MAX SPEED
The combination of Extreme electronics with the X4 pulse processor allows Ultim Max to map samples at count rates of 1,500,000 cps and accurately quantify composition at 400,000 cps.
ULTIM MAX SENSITIVITY
Size really does . Use the large Ultim Max sensor areas of up to 170 mm2 to deliver unparalleled count rate under the most demanding analytical conditions.
Speed & Sensitivity
REAL-TIME CHEMICAL IMAGING
CHANGE THE WAY YOU INTERACT WITH YOUR SAMPLE

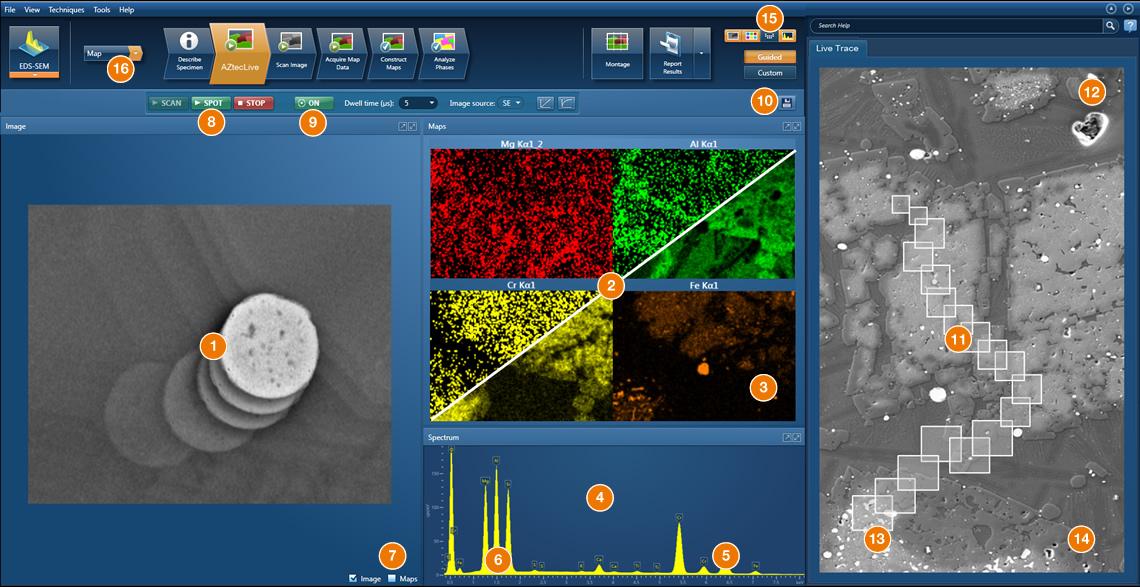

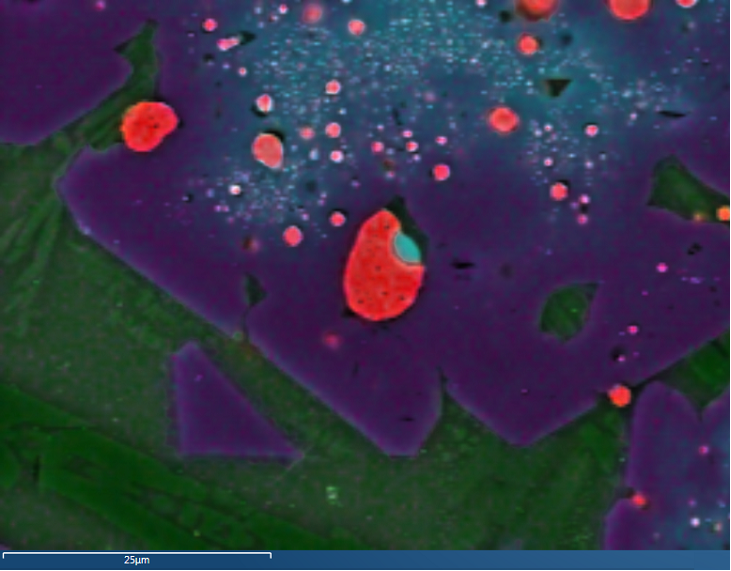

AZtecLive enables the quick and comprehensive investigation of a sample with real-time chemical feedback via the AZtecLive . No need to move back and forth between the microscope and the EDS software. Just navigate around your sample while viewing Live TV rate electron image and X-Ray maps until you find a feature of interest, then stop and AZtecLive will automatically switch to integration mode to collect quality image and X-ray maps allowing you to see the detail in your sample.
SIZE REALLY MATTERS
COLLECT UP TO 17x THE DATA IN THE SAME TIME
The large SDD sensors of Ultim Max allows up to 17x more data to be collected in the same time with no loss of accuracy. Whether you want to map larger areas, have better statistics in each data point, collect data much faster, or investigate the smallest nano-structures, Ultim Max is the ultimate solution for X-ray analysis in the SEM.
AZtecLive’s unique approach to EDS analysis is based around the principal that the user is presented with all the data they need to investigate their sample without having to acquire it manually. Everything is ‘Live’ and continually refreshed. This begins with the electron image, which is streamed live into the AZtecLive . Now there is no need to go back and forth between the microscope and EDS software, all you have to do is choose between SE or BSE image.
Like the electron image, with AZtecLive the X-ray maps are ‘Live’ and continuously updated. There is no need to choose when and where to acquire X-Ray maps and no need to wait for maps to acquire before deciding whether to investigate more or move on to another area. With AZtecLive you can see chemical all the time, even as you move around your sample. Sample investigations can now be done in a fraction of the time and with increased confidence and certainty that you will find what you are looking for and have a representative view of your sample.

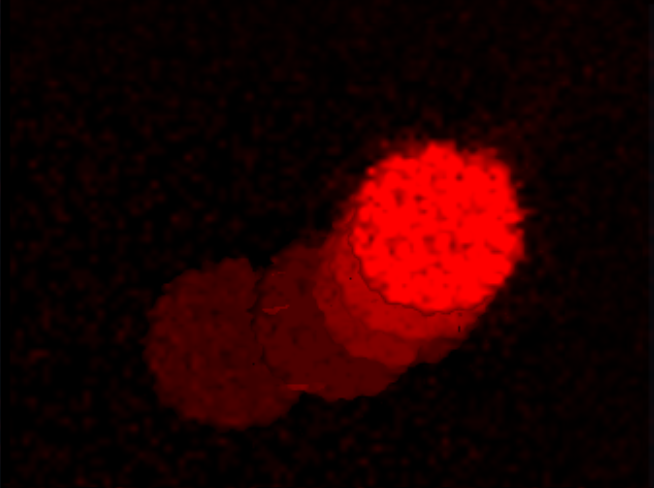

Transition to High Quality Image and X-Ray Mapping

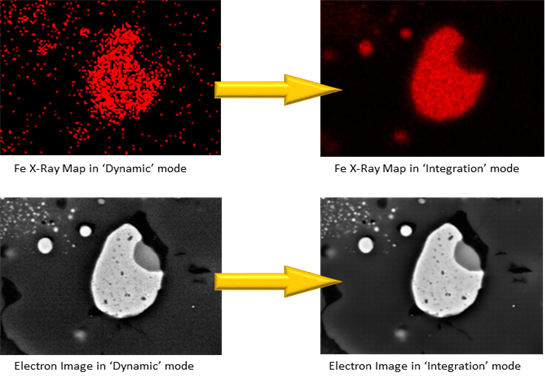

AZtecLive automatically transitions between responsive ‘Dynamic’ mode when navigating around your sample and quality ‘Integration’ mode when stationary.
Dynamic Mode is made possible by the count-rates delivered by the new Ultim Max large area Silicon Drift Detectors. You can view responsive and informative TV mode electron image and X-Ray maps while moving around your sample.
Integration Mode recognises that when you find a feature of interest and stop moving the stage, what you really want to do is discover more about the feature. So when the stage has stopped moving, AZtecLive automatically switches to Integration mode to give you higher quality data to reveal the finer detail. When you decide to move to another area, AZtecLive automatically switches back to the more responsive Dynamic mode.
Tru-Q is a unique combination of new and existing technologies that make the promise of automatic, real-time element identification and composition determination a reality. These include:
FLS – Robust algorithm for removing the X-ray background from the spectrum and fitting peak profiles of the identified elements to calculate peak areas that does not require any user set up
QCAL – New and unique approach to determining the precise position, resolution and shape of all element peak profiles to bring a new level of accuracy to both the of peak area and the intensity relative to that of a pure element (“k-ratio”)
XPP – The Matrix correction algorithm to convert k-ratios to element concentrations that has been proven to give more accurate results on all types of samples
PPC – Improved version of our special algorithm for predicting pile-up X-rays present at very count rates and putting them back in their correct place in the spectrum
AutoID – Algorithm to analyse peak content of a spectrum and deduce the elements responsible, even when there are severe peak overlaps
AZtecLive has a new unique pile-up algorithm to ensure accurate Element ID when collecting data from multiple phases at count rate.
Pulse pile-up is a common artefact when using count rates, and is most obviously seen in the form of sum peaks where two X-rays of an element are identified by the system as a single X-ray with twice the energy. If not removed these sum peaks can be mis-identified by the software or user as real elements. Common examples are Al + Al = Ar and Si + Ca = Cr.
Correcting for pile-up becomes increasingly challenging as count rate increases, and until now was only possible on a spectrum from a single composition. The new algorithm in AZtec Live also works for data from an X-ray map which will come from more than one . It uses a clustering algorithm to divide the data into regions of the same composition, before applying a pile-up correction on each one. After correction the data is recombined so automatic element ID can be carried out and the elements present in the sample correctly identified.

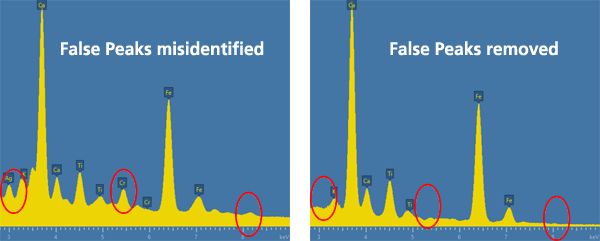

Spectra collected from a complex multi- sample during AZtecLive mapping at count rate. The first spectrum includes false element ID due to pulse pile-up, e.g. Cr which is Si+Ca. The second spectrum has been corrected by AZtecLive’s unique clustering-based algorithm which removes these artefacts and the false element identifications.
The richness of from electron images, X-ray Maps and spectra can sometimes be overwhelming. Having the ability to overlay selected X-ray maps on the electron image to create a image, means that you can see both morphology and chemical in a single image. This is really useful when looking for a particular in a sample.

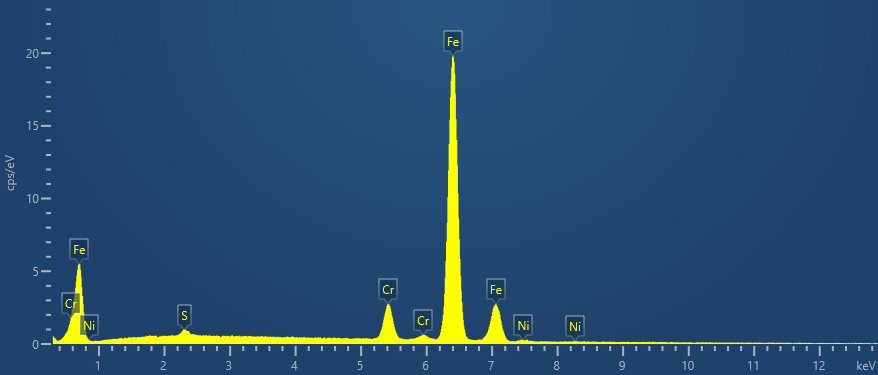

During general operation the spectrum shown in the AZtecLive is a sum spectrum from the full of view. This gives a general overview of the elements detected. When you find a feature of interest and more detail is required, simply switch to spot mode and click on the image (or one of the X-Ray maps) to see the spectrum from the feature.
Spectrum from an Iron-rich particle in a Slag sample

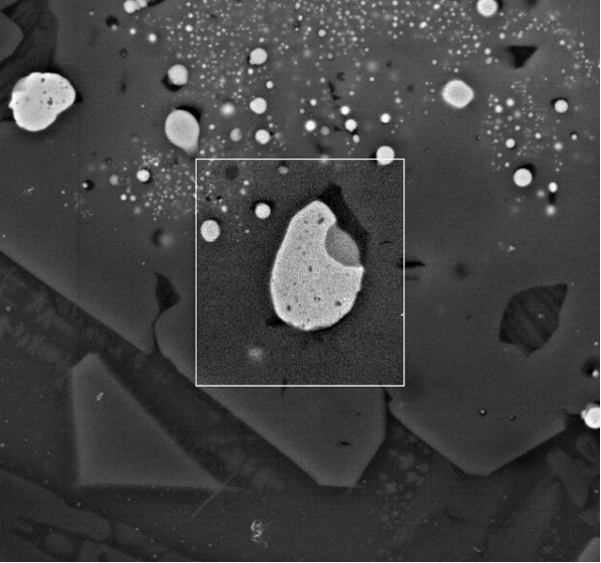

The Reduced Raster functionality lets you fine tune the electron image in AZtecLive rather than having to go back to the microscope . Reducing the scanning area and freezing the X-Ray maps means that the image is responsive enough to adjust Brightness, contrast, magnification, focus and even stigmation.

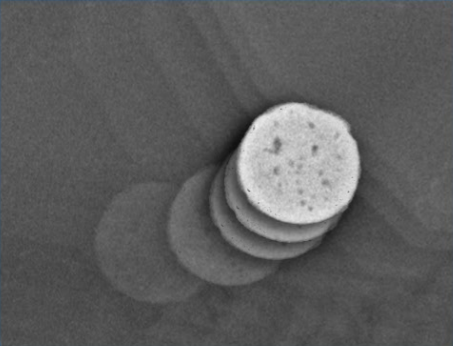

Focussing secondary electron image of using reduced raster function in AZtecLive
At any time during your sample investigation you can save all the data you can see with a single click. A site of interest will be created in the data tree with the Electron image, X-ray maps, Spectrum.
Have you ever been investigating a sample and wondered whether you have analysed a representative area or whether you have looked at a particular feature already?
‘Live Trace’ automatically records where you‘ve been on your sample and what elements have been detected. So you can easily see whether you have covered a representative area or indeed whether you have visited the same area before. The size of each area on the live trace shows you the area imaged at each location.

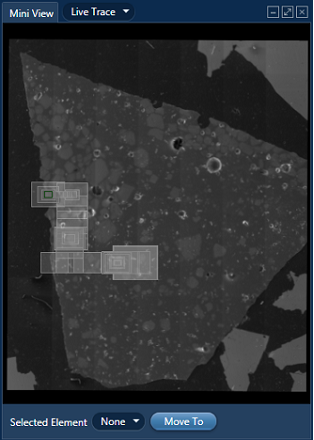

Live Trace window showing areas analysed by AZtecLive
Note: The image behind the live trace requires image registration key
If after completing a quick survey of your sample you want to know whether a specific element was detected or whether there were any ‘hotspots’ of concentrations. Then ‘Live Trace’ allows you to simply switch to an element only view, which will show the locations where the element was detected and also the relative concentrations detected at each location.

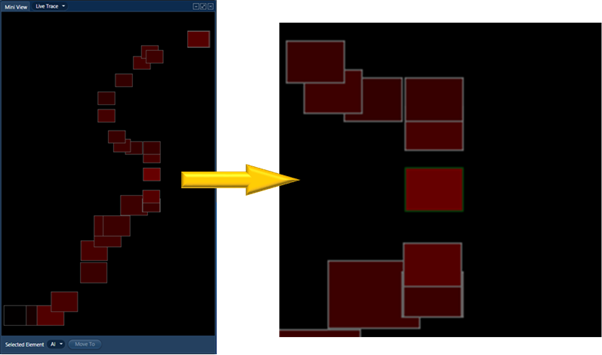

Live Trace view of Aluminium locations recorded during an investigation of a slag sample. The area highlighted by the user has a high Aluminium concentration.
If after inspecting the Live Trace you see a region that was exhibited a concentration of a particular element or showed the presence of an element you didn’t expect, then all you have to do is click on the area and tell AZtecLive to relocate to the area so you can perform a more detailed analysis.
If you have a previously acquired magnification image or Large Area Map of your sample, then it is a simple task to register it with AZtecLive and it will automatically be placed in the background of the Live Trace. This allows you to achieve an overall view of where you’ve been on your sample and what elements have been detected.
Live Trace showing imported Large Area Map of a Slag sample with analysed areas overlaid
Note: The image behind the live trace requires image registration key
Custom layout enables you to modify the AZtecLive step to suit your application or personal preferences. Simply select which quadrants you want to show or hide from the electron image, X-Ray Maps, periodic table and sum spectrum. You can also undock a quadrant and either make it full screen or even move it to another monitor.

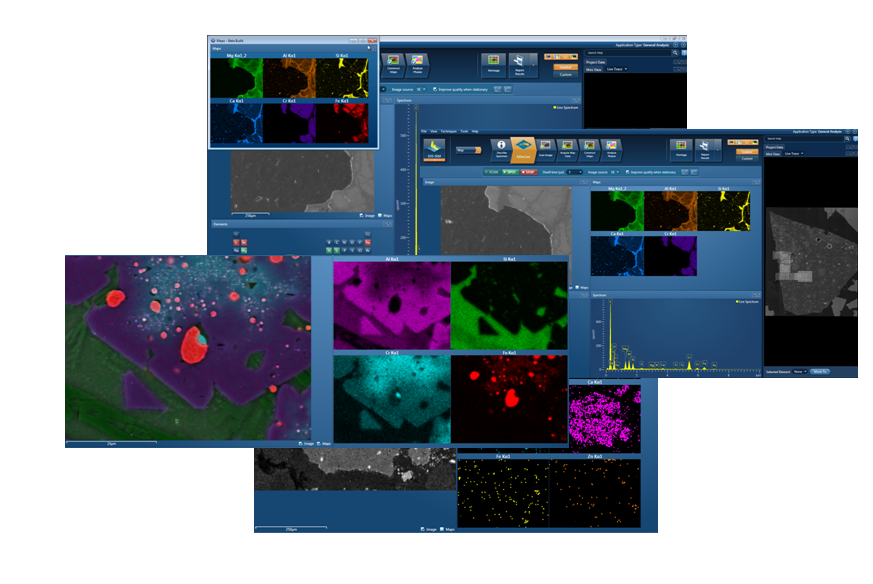

A selection of AZtecLive layouts to suit particular for applications or personal preferences

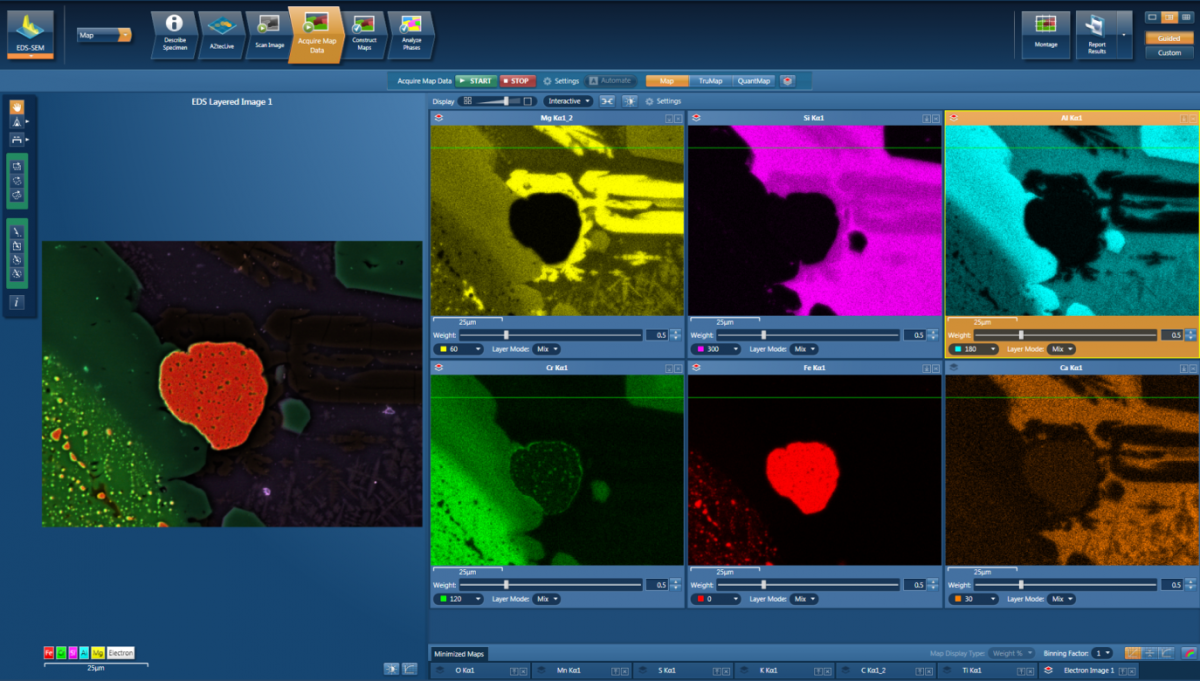

If at any time during your ‘live’ inspection of a sample you want to use all the power tools of AZtec to perform a more detailed analysis, then simply switch navigators or steps and you can carry on your analysis seamlessly.
Ultim Max is available with multiple sensor area options. Larger sensor areas deliver higher sensitivity because they collect more of the X-rays emitted from a sample.
Using the same conditions, Ultim Max 170 mm2 detectors will collect up to 17 times more data than a conventional 10 mm2 SDD detector. Therefore, 17 times more of a sample can be mapped in the same time.
X-ray maps collected with different sensor areas using the same microscope conditions. Count rates increase from 88,000cps for 10 mm2 to 1,500,000cps for 170 mm2. Therefore, for the same data quality, map resolution increases from 128x128 pixels for 10 mm2 to 512x512 pixels for 170 mm2 sensor areas, revealing much more of the sample in the same time.
Ultim Max incorporates Extreme Electronics. These electronics were developed to detect Lithium by EDS, which was achieved in 2012 for the first time (Burgess et al. 2013) and are being used to analyse Li-battery materials with X-Max Extreme and new Ultim Extreme windowless detectors.
Extreme Electronics provide the lowest noise signal detection and processing available for SDD. They ensure excellent energy resolution and spectrum quality is achieved at the count rates that are easily achieved by large area Ultim Max detectors. With a 100 mm2 detector, 130,000cps can be generated with around 1nA at 20kV, yet the resolution achieved is typically less than 125eV at MnKα.
Spectrum collected at <1nA, 20kV from FeS2 using an Ultim Max 100. Count rate was 130,000cps, resolution measured at MnKα was 124.2 eV.

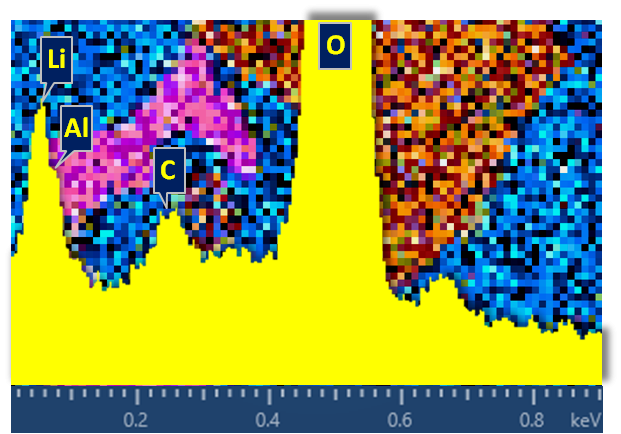

Spectrum collected from LiAl Oxide in lithium battery solid electrolyte using Ultim Extreme. This corresponds to the orange area in the X-ray map where LiK is yellow and AlL red.
All Ultim Max detectors include an integrated motorised slide. This means the detector can be easily and rapidly inserted and retracted using software control from the AZtecLive software, or using the buttons on the detector housing.
Only the combination of Ultim Max detectors and AZtec Live software can deliver the same accurate standardless quantitative analysis results at over 400,000cps as those achieved at count rate.
Ultim Max sensors and Extreme electronics provide the stability and fidelity of signal required for accurate processing and production of a spectrum with count rate independent shape and relative peak intensity.
AZtecLive includes unique Tru-Q technology, required to turn this spectrum automatically into a reliable quantitative result. Tru-Q consists of:
FLS – Robust algorithm for removing the X-ray background from the spectrum and fitting peak profiles of the identified elements to calculate peak areas that does not require any user set up.
QCAL – New and unique approach to determining the precise position, resolution and shape of all element peak profiles to bring a new level of accuracy to both the of peak area and the intensity relative to that of a pure element (“k-ratio”).
XPP – The Matrix correction algorithm to convert k-ratios to element concentrations that has been proven to give more accurate results on all types of samples
PPC – Improved version of our special algorithm for predicting pile-up X-rays present at very count rates and putting them back in their correct place in the spectrum

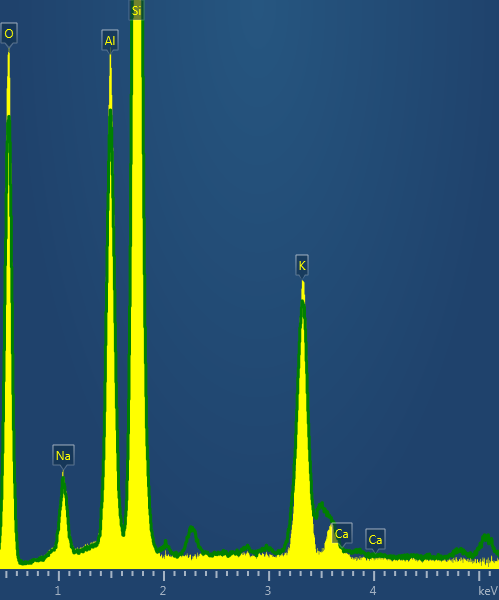

Spectrum collected at over 400,000cps with Ultim Max 100 from an Orthoclase sample. The original spectrum has been corrected using pulse pile-up correction in AZtecLive to produce the spectrum in yellow. In addition to the removal of sum peaks, the X-ray events have been replaced at their correct energies, correcting the intensity of the real characteristic X-ray peaks.

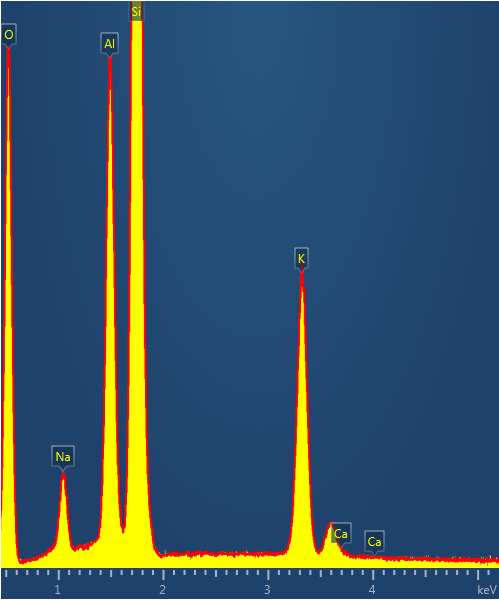

Comparison of spectra collected at over 400,000cps (yellow) and 4,000cps (red) from an Orthoclase sample. Once automatic pulse pile-up correction is applied, no difference in peak position, shape or intensity can be seen between the two spectra.

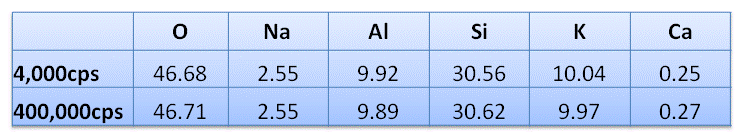

Composition of an Orthoclase calculated from spectra collected at 400,000cps and 4,000cps.
Ultim Max maintains excellent spectral resolution and signal stability at count rates over 1,000,00cps. The new X4 pulse processor has been designed to work with Ultim Max to process signals at this very rate to deliver -fast mapping for AZtecLive.
Sub-1 second mapping is used in AZtecLive for real-time chemical images aiding sample navigation and feature confirmation. At 1,500,000cps, an X-ray map collected in as little as 5 seconds provides a detailed picture of the elemental make-up of a region of interest, with sufficient data for automatic analysis.

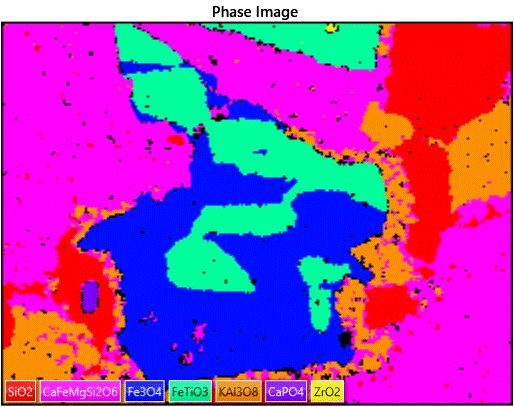

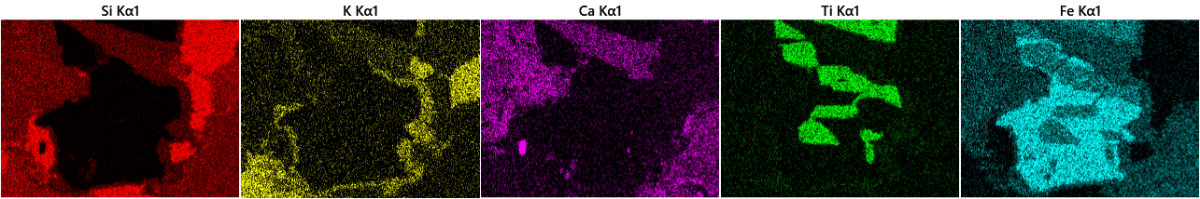

X-ray maps collected from a mineral sample at 1,500,000cps for 5 seconds
Maximising sensitivity requires collecting as many X-rays as possible. The number of X-rays that a can collect is determined by its solid angle, which is proportional to sensor area and the inverse of the square of the distance between sensor and sample.
Ultim Max uses new innovative designs to place the largest sensors as close as possible to the sample. This means solid angles of up to 2x greater than previous generation X-MaxN detectors are achieved.
Maximising sensor area and solid angle offers a number of vital benefits when using EDS in practice. Benefits include:
Maximising productivity by collecting the same data faster
Maximising sensitivity by collecting more data in the same time
Maximising sample integrity by minimising sample damage and contamination
Maximising image quality by using lower beam currents when X-ray mapping
Maximising spatial resolution for nano-analysis by maintaining signal at low accelerating voltage
The larger the sensor area the more capable an EDS becomes.

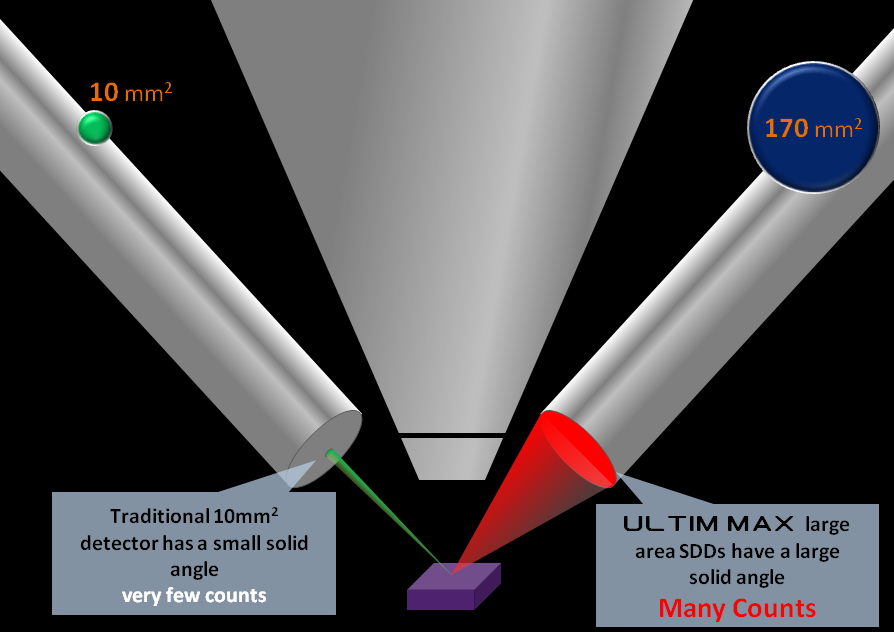

Schematic image of 10 mm2 and 170 mm2 detectors, showing that as sensor area increases the number of X-rays that a detector can collect increases.
Ultim Max detectors have guaranteed spectrum resolution which is the same independent of sensor size. All spec. detectors are guaranteed to achieve 127eV or better at MnKa measured at 130,000cps on installation, and during user operation. Typical resolution achieved by both sensor sizes is better than 125eV. All sensors also have excellent energy performance with guaranteed resolution at Carbon of 56eV or better, also measured at 130,000cps. No special operation modes are required to achieve this performance.
This means when choosing an Ultim Max you don’t need to accept any loss in performance or data quality when choosing a with a larger sensor. Choosing a with a larger sensor therefore will mean you gain the benefits of size while accepting no compromises.

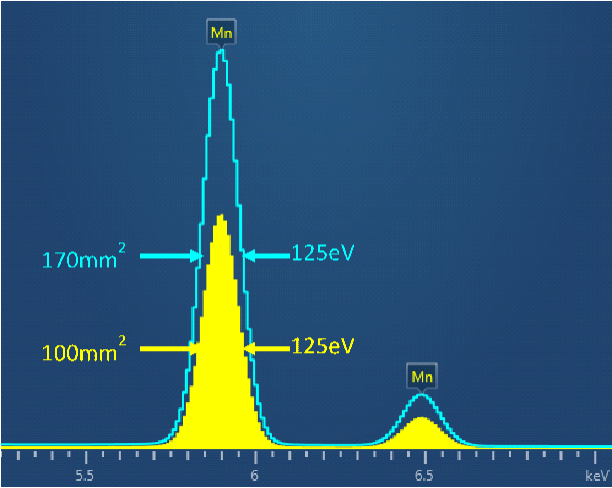

Mn spectra collected under the same microscope conditions by 100 and 170 mm2 sensors. Increasing sensor area means higher count rate with no compromise in resolution or performance
The majority of beam damage arises from three sources, ionization of the specimen by the electron beam, electron induced heating, and specimen charging. These damage mechanisms are primarily dependent on two factors, electron energy and beam current. To minimize specimen damage, a balance must be achieved between current and electron energy for each particular type of specimen.
The large sensor sizes and sensitivity of Ultim Max ensure that X-rays can be collected at the conditions required to minimise beam damage in a specimen. Sensor sizes of up to 170 mm2 allow the use of 17x less beam current than a conventional 10 mm2 or working at much lower electron energies.

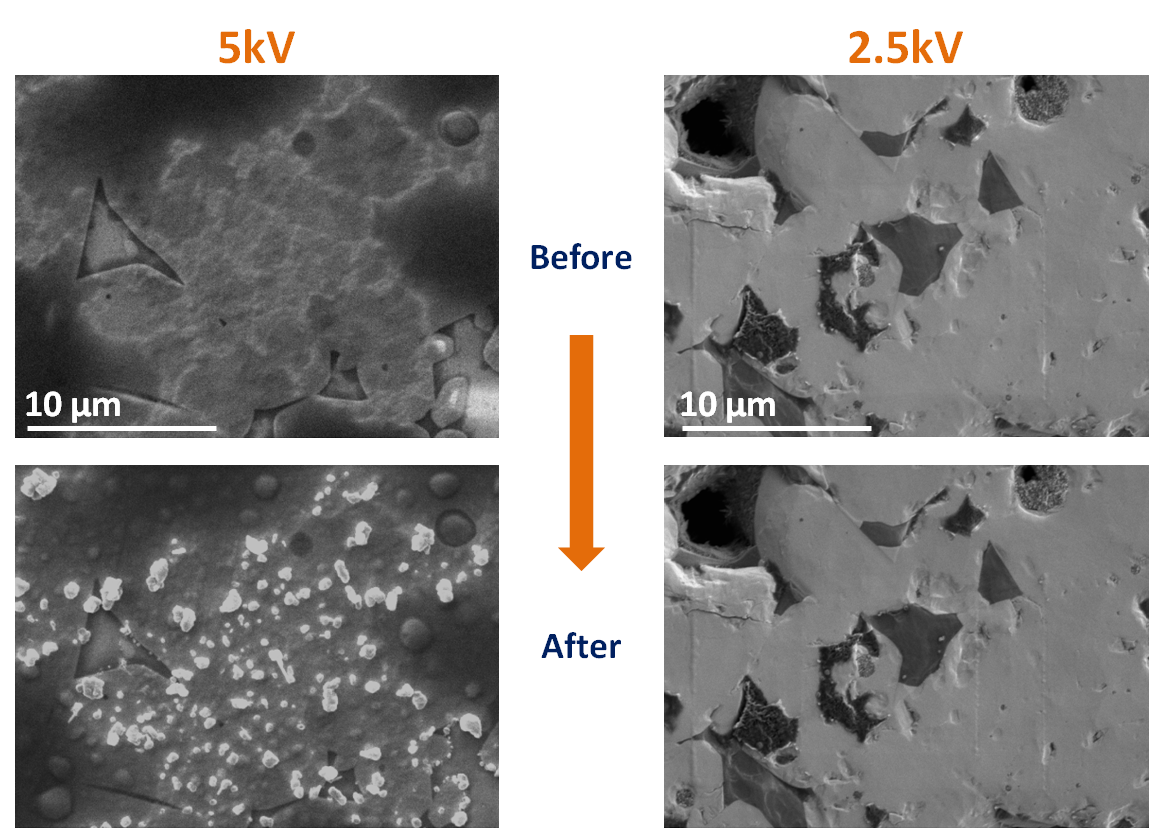

Electron images collected from a Li battery electrolyte specimen collected before and after the acquisition of a 10 minute EDS map. At 5kV the sample is significantly damaged. The sensitivity of Ultim Max allows the use of electron energies of 2.5kV where damage is significantly reduced.
Build up of contaminant during long exposure to an electron beam is always an issue when acquiring X-ray maps or resolution images. The large sensor sizes of Ultim Max allow the same data to be collected in as little as 1/17th of the time. This minimises exposure to the electron beam and therefore minimises the amount of contamination build up. This ensures that you analyse the specimen and not the contamination.

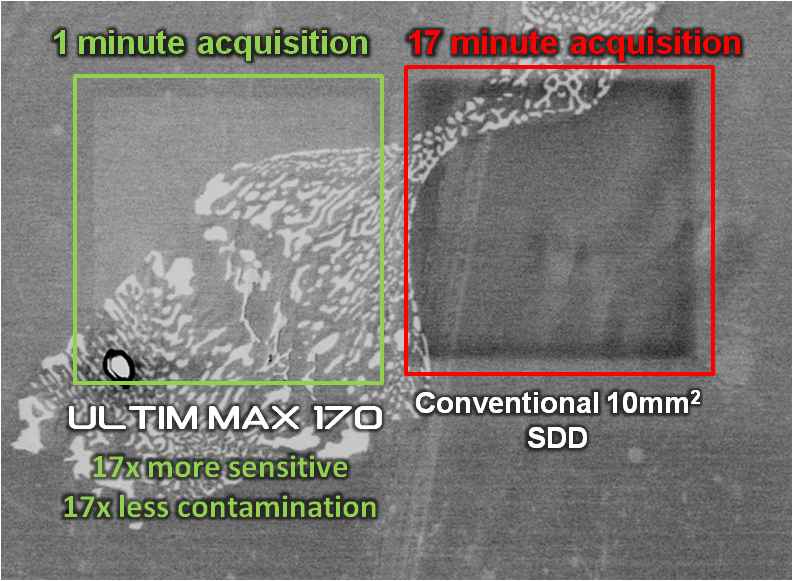

Electron image of a spinner bowl sample showing contamination build up after EDS map acquisitions of 1 minute and 17 minutes.
TruMap gives the true picture of element variation in a sample. It accurately removes common artefacts responsible for errors in X-ray maps in real-time during data collection. As a result only real spatial variation of elements is shown, independent of variations in the X-ray spectrum.
At every pixel in the map the spectrum is processed so the X-ray background is removed and the peaks of all elements are separated. This means that element signals are correctly separated when peaks overlap in the spectrum. In addition, apparent minor element variation which is often caused by different background intensity from different phases is also removed.

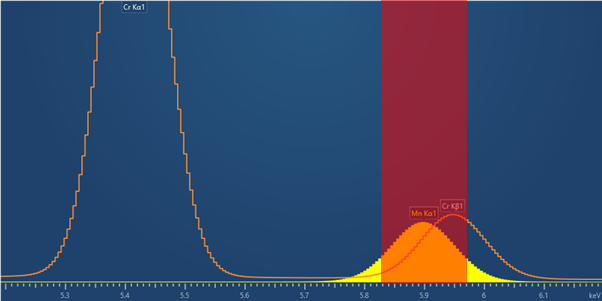

Where peaks overlap, e.g. where Mn (MnKα) is present with Cr (CrKb), conventional X-ray mapping will show significant errors, because all X-ray counts in an energy window for each element are combined.

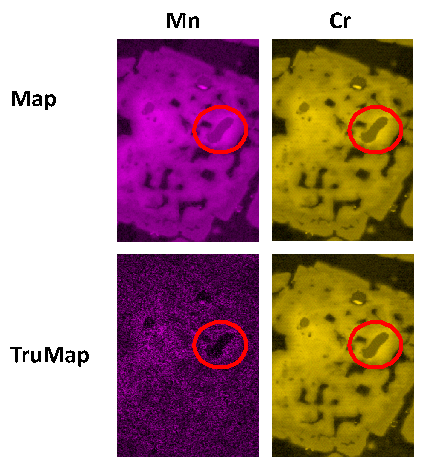

Mn and Cr maps in this sample look identical, however this is due to the dominance of the Cr signal. TruMap separates MnK from CrK to show the real underlying Mn variation without changing the real Cr variation.
X-ray maps collected at 100 of thousands or millions of counts per seconds using SDD detectors, often shows an immense amount of fine intensity detail. This detail is more often due to variation in the X-ray background intensity than real element variation.
X-ray background intensity is related to the mean atomic number of a . The heavier the the more background X-rays it will emit. Therefore gold particles in an oxide matrix will appear to have higher element intensities where the particles are present than in the surrounding matrix. High count rate X-ray maps from this sample will show apparent variations for every element in the periodic table, due to the phases having significantly different mean atomic number.
Therefore for accurate mapping of intensity signals the background signal must be removed. TruMap uses the Tru-Q FLS technique, meaning the background is removed automatically, without the need to model the background for each . This allows the real variation of minor elements to be determined.

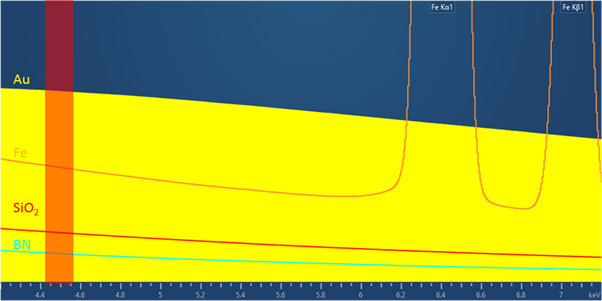

X-ray spectra collected under the same conditions for Au, Fe, SiO2 and BN. Intensities in the energy window used to calculate Ti maps (red) vary widely due to the different background intensities from the different materials.

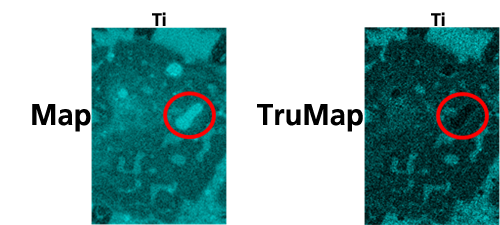

X-ray map of minor levels of Ti in a sample. Despite no elements overlapping with Ti in this sample, TruMap shows there are significant errors in the traditional X-ray map, caused by the background intensity change between Cr/Fe particles and the surrounding oxide matrix.
Combining Ultim Max and AZtecLive offers the unique capability to map minor element variations. Ultim Max is sensitive enough to rapidly provide enough counts to achieve sufficient precision to image changes on the 0.1wt% level. Variations due to peak overlaps and background intensity are automatically and accurately removed by TruMap.

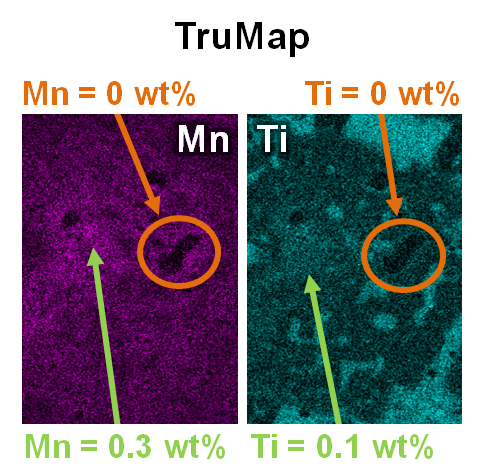

TruMaps for Mn and Ti in this sample reveal real variations in minor elements which have been confirmed by WDS. Variations in Mn between 0 and 0.3wt% and Ti between 0 and 0.1wt% are clearly visible.
For light elements with X-ray energies less than 1keV, count rates are reduced by the presence of an X-ray window no what the properties of that window. The Larger sensor sizes of Ultim Max ensure that more of the energy X-rays generated in the sample are collected. Extreme electronics allow more of those low energy X-rays to be counted. This powerful combination maximises sensitivity for light elements.
For ultimate light element sensitivity Ultim Extreme uses windowless operation, to increase light element sensitivity by up to 8x.
To improve the spatial resolution of EDS the incident energy of the electron beam must be reduced. As electron landing energy is reduced the number of X-rays generated also decreases. To overcome this, the large sensor sizes of Ultim Max ensure maximum counts are achieved under the most demanding conditions. Sensor sizes of 100 mm2 and 170 mm2 allows a consistent count rate to be achieved as you decrease electron landing energy from 5kV to 3.5 kV.
For the ultimate spatial resolution in bulk samples Ultim Extreme allows practical count rates to be achieved at electron energies of 1.5kV and lower.

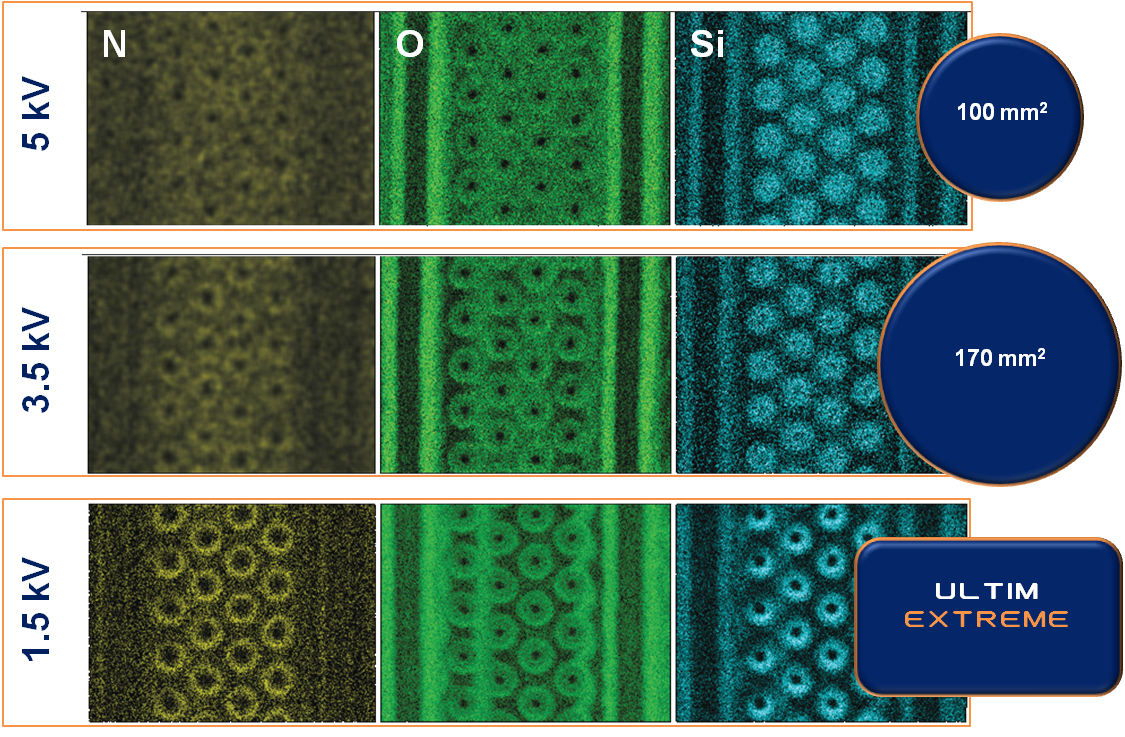

TruMaps of N, O and Si from a de- device collected with constant acquisition time showing increasing spatial resolution with decreasing incident electron energy. Count rate is maintained at kV by increasing solid angle, and using windowless collection in the case of Ultim Extreme.

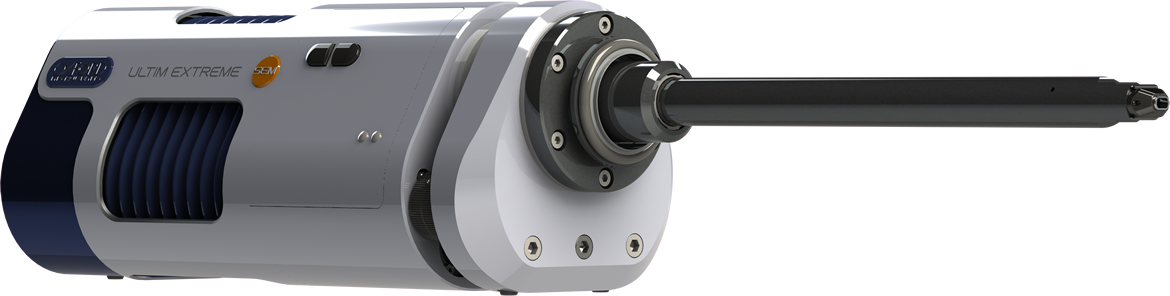

Ultimate spatial resolution and energy performance for EDS in the SEM. Combining Extreme electronics and windowless construction with optimised geometry and sensor delivers up to 15x greater sensitivity than a conventional large area SDD.
Detection and mapping of Li X-rays
Work at energies of less than 2kV to deliver sub 10nm spatial resolution in bulk samples
Materials characterisation at sub 1kV
Combine with immersion optic to collect sensitivity data at up to 30kV with no compromise
Viewing features that are difficult to see with an SE detector
This application video shows how AZtecLive can be used to view features that cannot be seen with imaging detectors in the electron microscope
Analysis of Asthma Inhaler Contaminants
This application video shows how AZtecLive can be used to find contaminants in a metered dose sample from an Asthma inhaler
Analysis of Defective Polymer Pouches
This application video shows how quick and easy it is to determine the cause of failure in a defective polymer pouch using AZtecLive and Ultim Max
Application Notes
Analysing a NAND Flash memory device using kV EDS
The combination of X-Max Extreme with GeminiSEM 500 provides a uniquely convenient and powerful imaging and analysis tool for investigating the morphology and chemistry of nano-structures down to less than 10nm. Using the example of ferrocerium nano-particles and GaInAs dots this capability is demonstrated in practice…
This application note describes the unique approach and technology used in AZtecLive EDS systems to provide automatic real-time element identification and composition determination
This application note shows how TruMap displays in real-time the real variations of elements in a sample. It describes how minor element variations in a refractory oxide containing slag sample created during clean steel manufacture can be studied.
