Aztec Live

AZtecLive and Ultim Max

AZtecLive is a revolutionary new approach to EDS analysis that enables a radical change in the way users perform sample investigation in the SEM. It combines a live electron image with live X-ray chemical imaging to give an intuitive new way of interacting with your samples.

AZtecLive is powered by Ultim Max, the next generation Silicon Drift Detectors (SDD) combining the largest sensor sizes with Extreme electronics to deliver unparalleled speed and sensitivity.

  • Real-time chemical imaging
  • Record every step of your analysis with Live Trace
  • Up to 170 mm2 sensor area
  • Quantitative analysis at 400,000 cps
  • EDS mapping at >1,000,000 cps
寻求报价 View Webinar 下载 AZtecLive说明书

Features

LIVE
MAPPING

Video rate electron and chemical imaging enables real-time navigation by chemistry for the first time.

LIVE
TRACE

Automatically record where you have been and what elements have been detected so you never lose a feature of interest. See both the position and concentration of elements to quickly find ‘hot spots’.

ULTIM MAX SPEED

ULTIM MAX
SPEED

The combination of Extreme electronics with the X4 pulse processor allows Ultim Max to map samples at count rates of 1,500,000 cps and accurately quantify composition at 400,000 cps.

ULTIM MAX SENSITIVITY

ULTIM MAX
SENSITIVITY

Size really does . Use the large Ultim Max sensor areas of up to 170 mm2 to deliver unparalleled count rate under the most demanding analytical conditions.

Speed & Sensitivity

REAL-TIME CHEMICAL IMAGING

CHANGE THE WAY YOU INTERACT WITH YOUR SAMPLE

AZtecLive enables the quick and comprehensive investigation of a sample with real-time chemical feedback via the AZtecLive . No need to move back and forth between the microscope and the EDS software. Just navigate around your sample while viewing Live TV rate electron image and X-Ray maps until you find a feature of interest, then stop and AZtecLive will automatically switch to integration mode to collect quality image and X-ray maps allowing you to see the detail in your sample.

SIZE REALLY MATTERS

COLLECT UP TO 17x THE DATA IN THE SAME TIME

The large SDD sensors of Ultim Max allows up to 17x more data to be collected in the same time with no loss of accuracy. Whether you want to map larger areas, have better statistics in each data point, collect data much faster, or investigate the smallest nano-structures, Ultim Max is the ultimate solution for X-ray analysis in the SEM.

AZtecLive Product Overview

Product Overview Azteclive

1 - Live Image

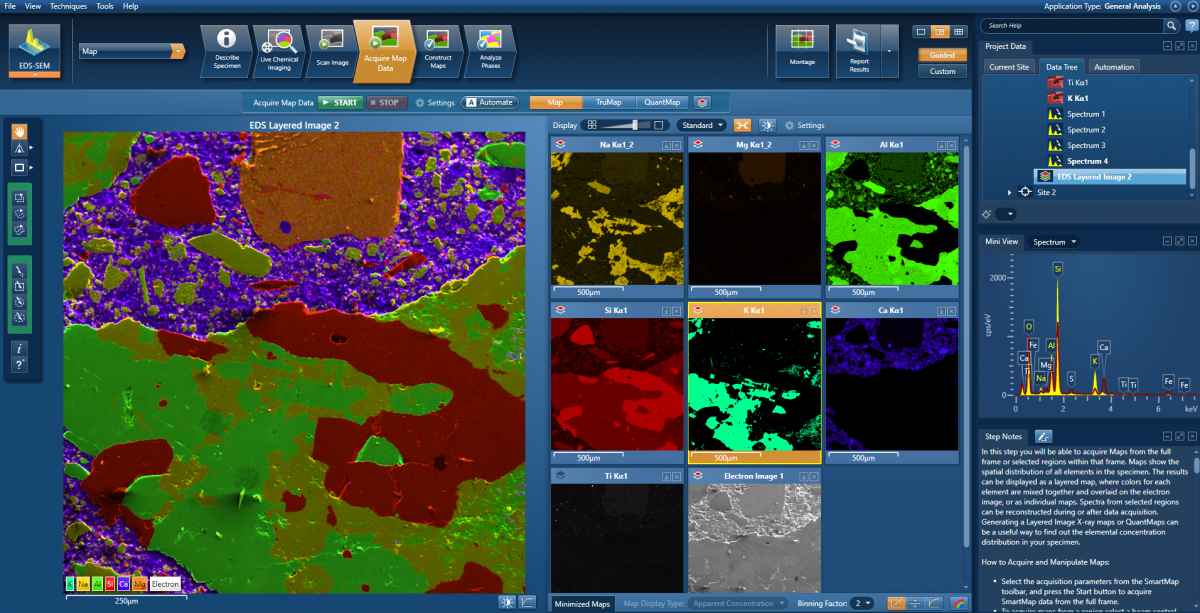

2 - Live X-Ray Maps

3 - Transition to High Quality Image and X-Ray Mapping

4 - Tru-Q Spectrum Processing

5 - Pulse Pile-up Correction

6 - Live Layered Map

7 - Spot Analysis Mode

9 - Reduced Raster

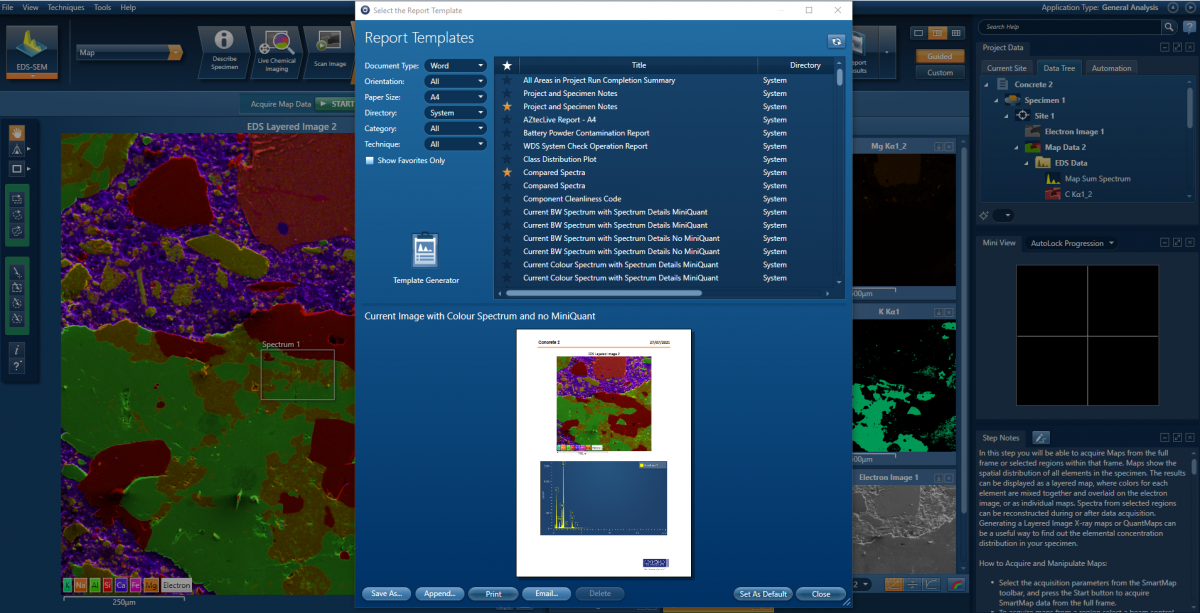

10 - Data Saving

11 - Live Trace - Stage Locations

12 - Live Trace - Element Locations

13- Stage Relocation

14 - Image Import

15 - Custom Interface Layout

17 - More Detailed Analysis

Ultim Max Product Overview

1 - Sensor Area

2 - Low Noise X-ray Detection

3 - Bellows SEM Interface

4 - Motorised Slide

5- Quantitative Analysis at >400,000CPS

6- X-ray Mapping at >1,000,000CPS

7- Size Really Matters

8- Sensor Independent Performance

9- Sample Damage

10- Sample Contamination

11- TruMap

12- Highlight Real Chemical Variation

13- Mapping Low Concentrations

14- Light Element Analysis

15- Low KV Analysis

Contact our application specialists Request Pricing
Ultim Extreme Title Ultim Extreme Device

Ultimate spatial resolution and energy performance for EDS in the SEM. Combining Extreme electronics and windowless construction with optimised geometry and sensor delivers up to 15x greater sensitivity than a conventional large area SDD.

  • Detection and mapping of Li X-rays
  • Work at energies of less than 2kV to deliver sub 10nm spatial resolution in bulk samples
  • Materials characterisation at sub 1kV
  • Combine with immersion optic to collect sensitivity data at up to 30kV with no compromise
Request Pricing Contact our Application Specialists View Product Page

Product Videos

The Story Behind AZtecLive & Ultim Max

AZtecLive: Real-time Chemical Imaging

Ultim Max: A Revolution In SDD Technology

Application Videos

Viewing features that are difficult to see with an SE detector

This application video shows how AZtecLive can be used to view features that cannot be seen with imaging detectors in the electron microscope

Analysis of Asthma Inhaler Contaminants

This application video shows how AZtecLive can be used to find contaminants in a metered dose sample from an Asthma inhaler

Analysis of Defective Polymer Pouches

This application video shows how quick and easy it is to determine the cause of failure in a defective polymer pouch using AZtecLive and Ultim Max

Application Notes

Analysing a NAND Flash memory device using kV EDS

The combination of X-Max Extreme with GeminiSEM 500 provides a uniquely convenient and powerful imaging and analysis tool for investigating the morphology and chemistry of nano-structures down to less than 10nm. Using the example of ferrocerium nano-particles and GaInAs dots this capability is demonstrated in practice…

Download
AZtecLive In Depth: TruQ

This application note describes the unique approach and technology used in AZtecLive EDS systems to provide automatic real-time element identification and composition determination

Download
AZtecLive In Depth: TruMap

This application note shows how TruMap displays in real-time the real variations of elements in a sample. It describes how minor element variations in a refractory oxide containing slag sample created during clean steel manufacture can be studied.

Download
AZtecLive 及 Ultim Max

AZtecLive通过实时化学成像将EDS技术从静态转变为动态。AZtecLive由Ultim Max提供动力,Ultim Max是新一代SDD探测器,结合了大尺寸晶体和低噪音电子元器件,可提供快速、准确的样品概况信息。

Download
